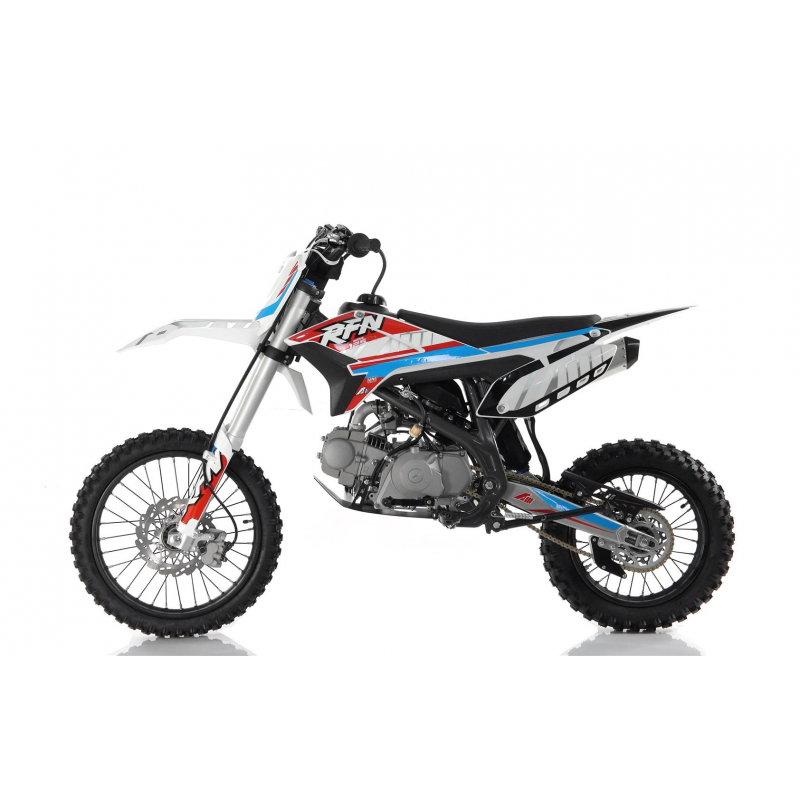

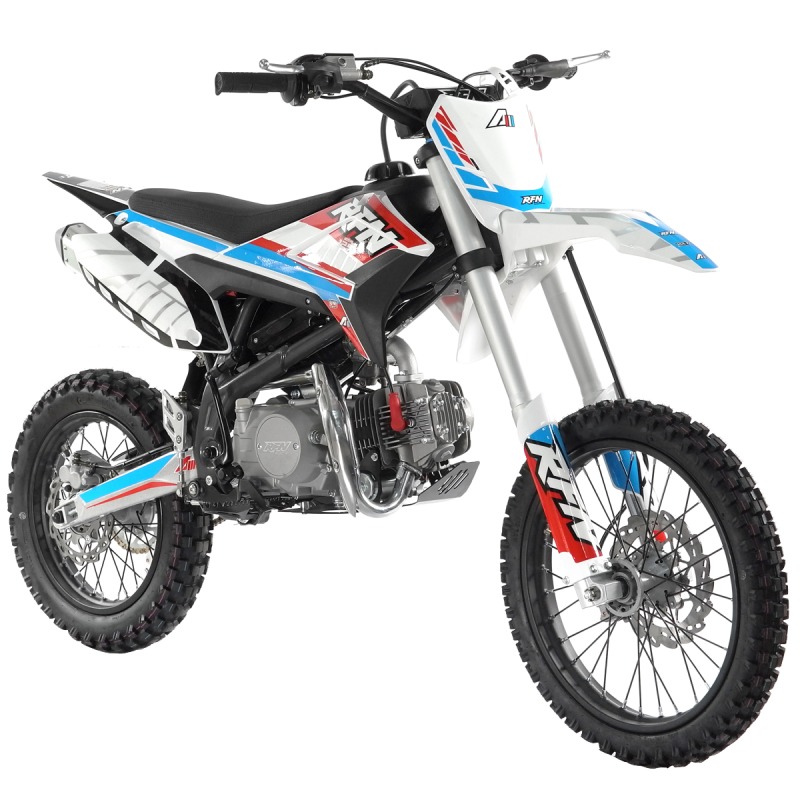

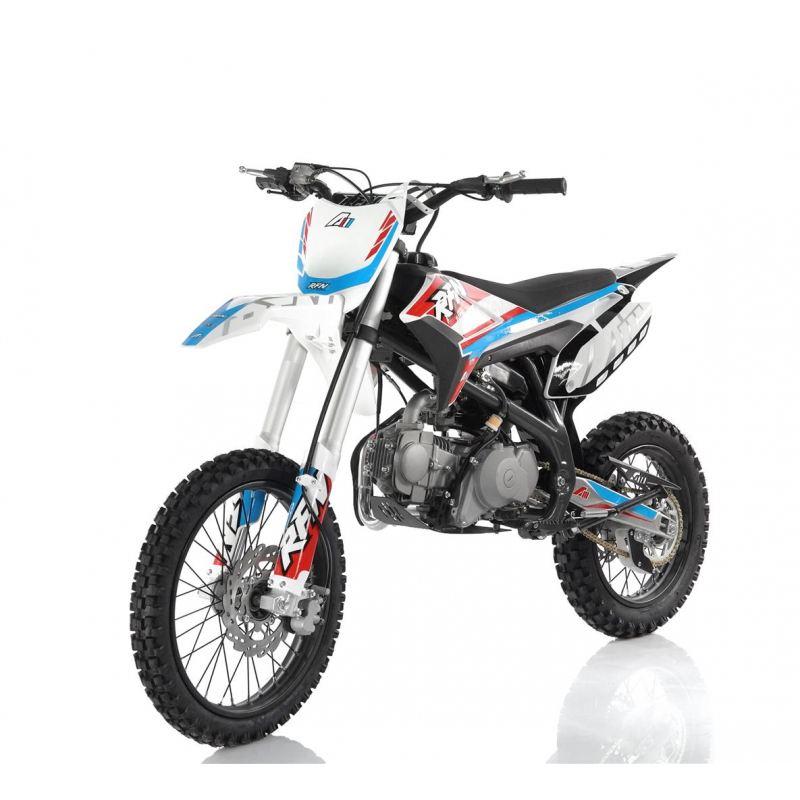

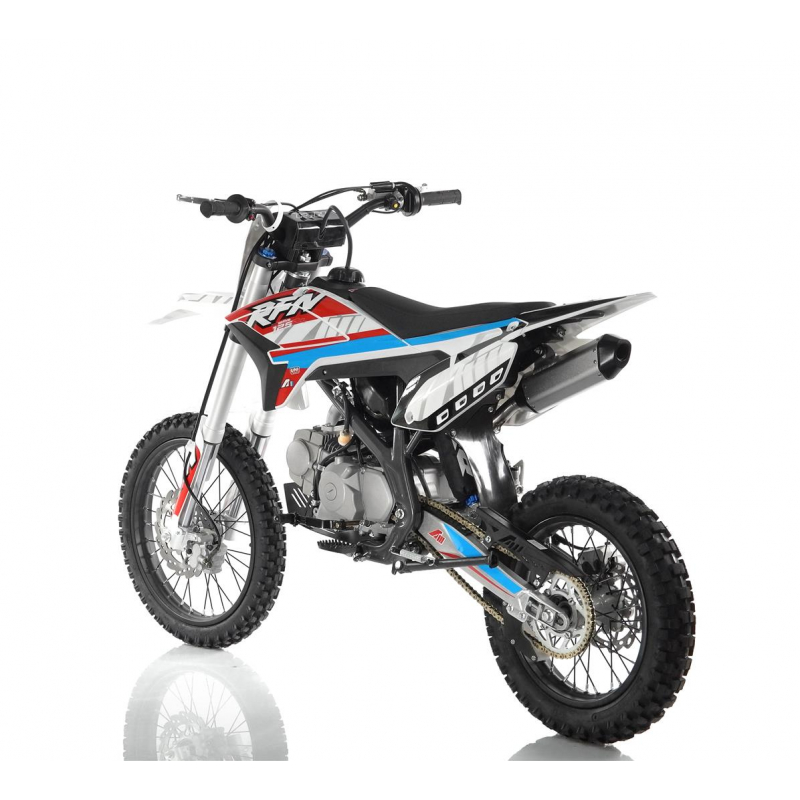

125cc RFN Thunder Dirt Bike - Big Wheel - 17"/14" - Red

Click image to zoom

948.9996 £949.00 inc VAT

Availability	Out of Stock Please contact us if your order is urgent and we can confirm the dispatch lead time - [email protected] Add to wishlist Notify me when available
Supplier	Apollo™
Brand	Apollo™
Product Code	RED-125cc-RFN-THUNDER-DIRT-BIKE
Supplier Code	RED-125cc-RFN-THUNDER-DIRT-BIKE
Rating	5 \| (2)

The RFN 125cc dirt bike replaces it's well established and proven RFZ racing predecessor.

The RFN 125 features a genuine YX125cc dirt bike with an upgrade to electric start as well as kick start back up. The bike also feaures a big wheel upgrade of 17" front and 14" rear wheels.

All in all, we are confident that no other proven brand of dirt bike on the market at this price point offers a spec nor finish quality to match this stunning bike.

Key Features -

Genuine YX 125cc engine
Electric start
Manual 4 speed transmission (N-1-2-3-4)
Front & rear hydraulic brakes with wavy discs
Latest technology 32mm tubular & profiled frame
17” Front & 14” Rear wheels with rimlocks
VOLT™ V-ONE front & rear suspension
Sports exhaust system

For older, more experienced riders we also offer a similar pit bike with a 140cc manual transmission engine - 140cc RFN™ Thunder Dirt Bike - XL Wheel - 19"/16"

125cc RFN Thunder Dirt Bike - Big Wheel - 17

-------------------------------------------------------------------------------------------------------------------------------------------

Dirt bikes & associated products are strictly for off road use only & should NEVER under any circumstances be used on the road. Riders should always observe the essential warnings & safety advice supplied with these products & should only operate the motorcycles when wearing full body safety equipment & helmet. If in doubt, please contact us & we will be more than happy to help.

This product is supplied with a 90 day manufacturers parts only defect warranty.

-------------------------------------------------------------------------------------------------------------------------------------------

Product images are for illustrative purposes only and sometimes actual colour shades, decals and styles may differ from the actual product. If you require confirmation then just give us a call.

General Specifications

WEIGHT	93KG
SEAT HEIGHT	840MM
WHEELBASE	1220MM (+/- 10MM)
GROUND CLEARANCE	330MM
FRONT SUSPENSION	VOLT V-1 770MM (210MM TRAVEL)
REAR SUSPENSION	VOLT V-1 350MM (50MM TRAVEL) ADJUSTABLE
SWING ARM	HIGH STRENGTH STEEL WITH NEEDLE CAGE
FRONT BRAKE	HYDRAULIC PISTON - 220MM VENTILATED WAVY DISC
REAR BRAKE	HYDRAULIC PISTON - 190MM VENTILATED WAVY DISC
FRONT / REAR WHEEL	17" / 14" HIGH STRENGTH STEEL (WITH RIMLOCK)
FRONT / REAR TYRE	17" / 14"
SEAT	TBC
HANDLE BAR / CLAMPS	28.6MM STEEL - FAT BAR / ALLOY TRIPLE
GRIPS	APOLLO
FRAME	PROFILED 35MM OVERSIZE TWIN TUBULAR
MAX RIDER WEIGHT	95KG

Engine & Transmission Specifications

ENGINE	125CC - LEADING YX BRAND
TRANSMISSION	4 GEARS (N-1-2-3-4)
ENGINE TYPE	4 STROKE - SINGLE CYLINDER - ELECTRIC START
BORE X STROKE	52.4MM X 55.5MM
OIL CAPACITY	900ML (15W/30)
CARBURETOR	MIKUNI VM22 (22MM)
CLUTCH	WET CLUTCH - MULTI PLATE
IGNITION	CDI
CHAIN	428-110 KMC REINFORCED
REAR SPROCKET	41 TEETH (428)
FRONT SPROCKET	15 TEETH (428)
EXHAUST	SPORTS
FUEL TANK	3.2L
BATTERY	TBC
TOP SPEED	45+ MPH

Key Safety Features

Adjustable speed limiter on throttle
Removable keys – no sneaky riding while you sleep!
CE Approved & safety plated

We have also produced some essential safety information on the link here - https://www.stormbuggies.com/safety

Essential Safety Gear! The driver AND passenger must wear the following safety gear -

Safety approved & correct fitment of helmet
Eye protection such as shatterproof goggles
Race suit or long sleeved top and full length bottoms
Boots such as over-the-ankle style
Gloves

Please see some general safety information on the link below -

http://www.stormbuggies.com/safety

Please see a guide to our full warranty policy on the link below -

http://www.stormbuggies.com/warranty

Please note that the guarantee / warranty is 'Return to Base' (RTB). The cost to return the goods to us and the delivery back of the goods are the responsibility of the purchaser.

Please also note that the guarantee / warranty will be void if the vehicle is not serviced in line with the servicing policy, or if the vehicle is used outside of its guidelines. For example, electric vehicles are for DRY USE ONLY.

Please click HERE for the spare parts.

User manuals and spare parts diagrams are located HERE.

Flexible payment methods that works with Klarna!

You now have the option of flexible payment methods on your bike.

Here is how it works -

Add your items to the cart

Proceed to checkout and choose Klarna

Enter your debit/credit card details

Klarna's Pay in 3 / Pay in 30 days are unregulated credit agreements. Borrowing more than you can afford or paying late may negatively impact your financial status and ability to obtain credit. 18+, UK residents only. Subject to status. Ts&Cs and late fees apply.

Unless selecting the 'Assembly & PDI' option, this product will be supplied in boxed (basic kit form) for home assembly.

Depending on work rate, the assembly will generally take 1-2 hours. All of the more difficult parts such as the engine installment and electrics are already pre-assembled at the factory. The basic assembly required is comprised of the larger items such as the front wheel, handlebars and front shock absorber.

Whilst generally described as basic assembly, for safety purposes we strongly recommend that the assembly and pre ride safety testing (also known as PDI) is carried out by an experienced mechanic / technician that is competent to work on motorcycles and carry out basic adjustments if needed. For example - carburetor set up and adjustment.

Extremely Important – Full Nut and Bolt Check

When assembling any new vehicle, and as a part of the vehicle’s ongoing basic maintenance, it is extremely important that a FULL nut & bolt check is carried out. A comprehensive nut & bolt check is crucial for ensuring the vehicle is safe to ride from the box, and for preventing potential mechanical failures caused by vibration during use.

Please DO NOT assume that all the nuts & bolts on the vehicle are adequately tightened.

We also strongly recommend that where a Nyloc type of nut is not present, please ensure that thread lock adhesive is applied to the nut. We use the ‘Loctite’ brand, with great success.

Working from the front to the back of the vehicle, it is extremely important that EVERY nut and bolt is checked for adequate tightness.

Please pay particular and close attention to the following parts (where relevant) on the vehicle –

• Wheel & axle nuts

• Brake caliper bolts

• Brake disc bolts

• Brake hose fixings

• Triple clamp bolts

• Handlebar clamp mounts

• Lever clamp bolts

• Pedal bolts

• Shock bolts

• Shock clamp bolts
