Availability |
In Stock
Add to wishlist
Please contact us if your order is urgent and we can confirm the dispatch lead time - info@stormbuggies.com
|
---|---|
Supplier | RFN Racing |
Brand | RFN Racing |
Product Code | RED-70cc-RFN-RACING-THUNDER-PIT-BIKE |
Supplier Code | RED-70cc-RFN-RACING-THUNDER-PIT-BIKE |
Rating | 5 | (2) |

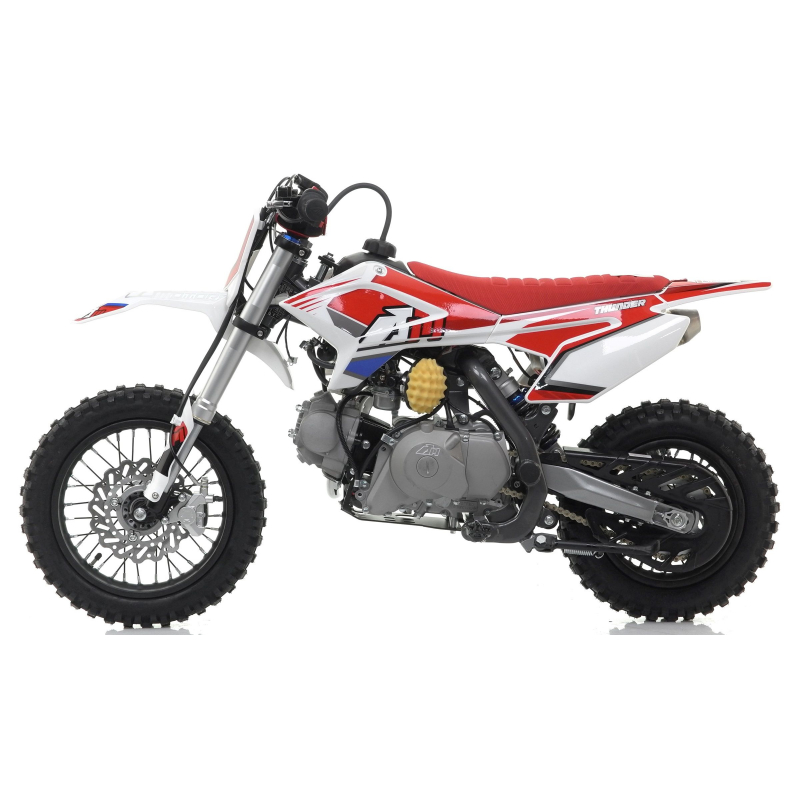

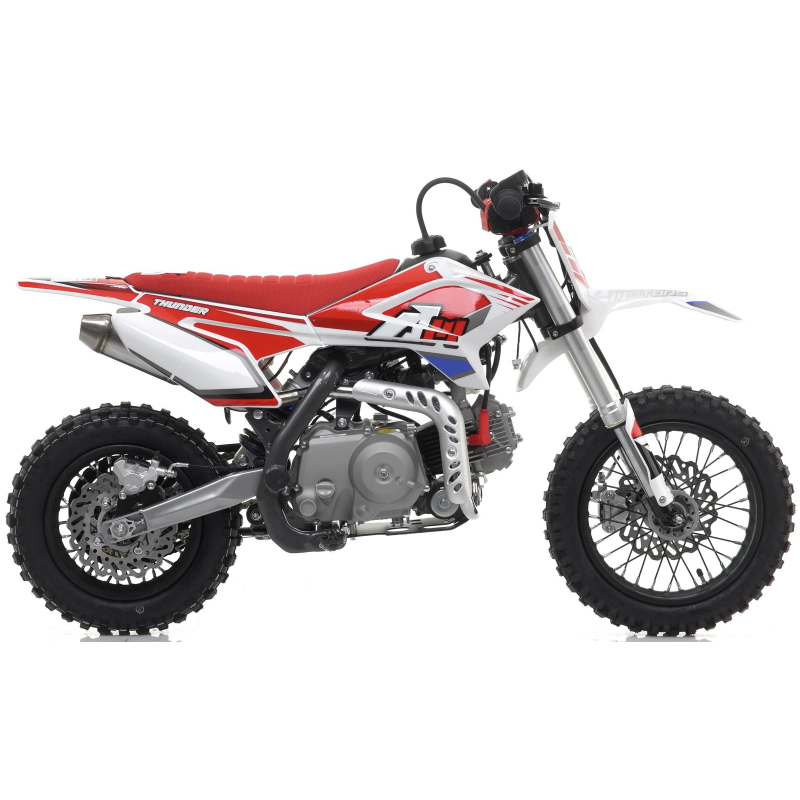

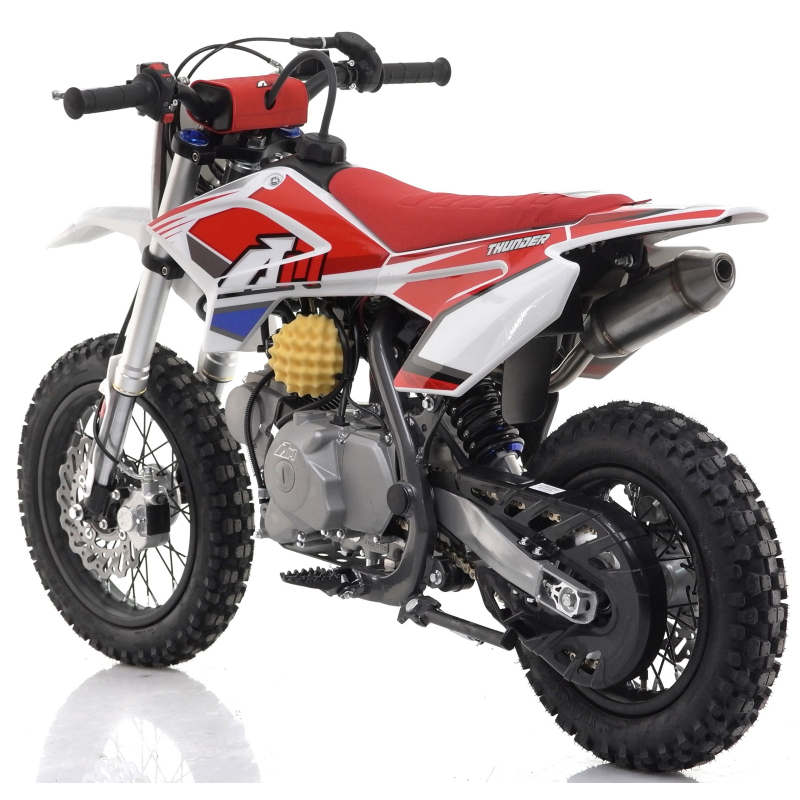

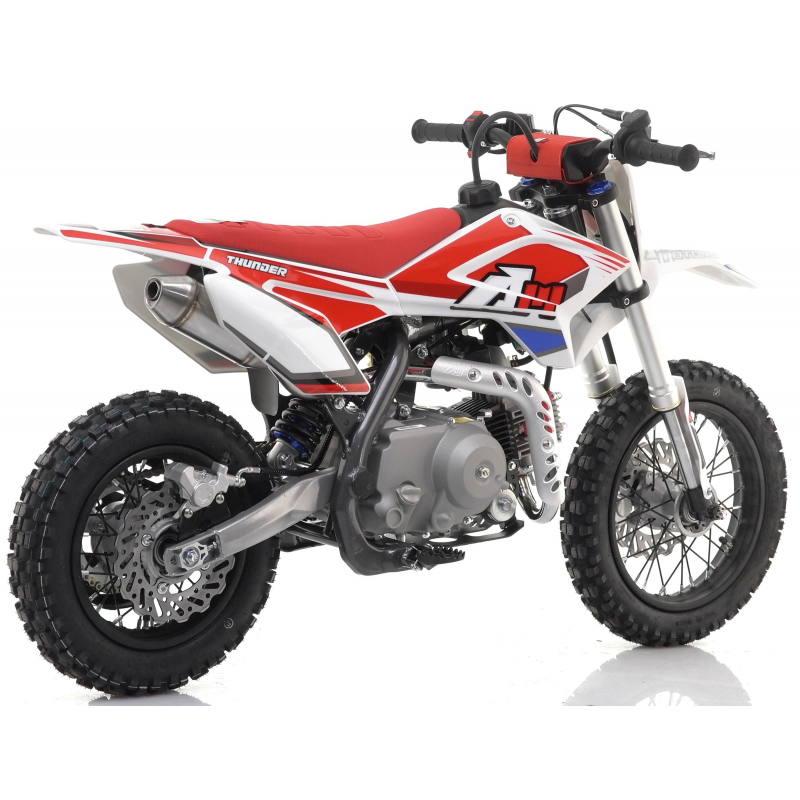

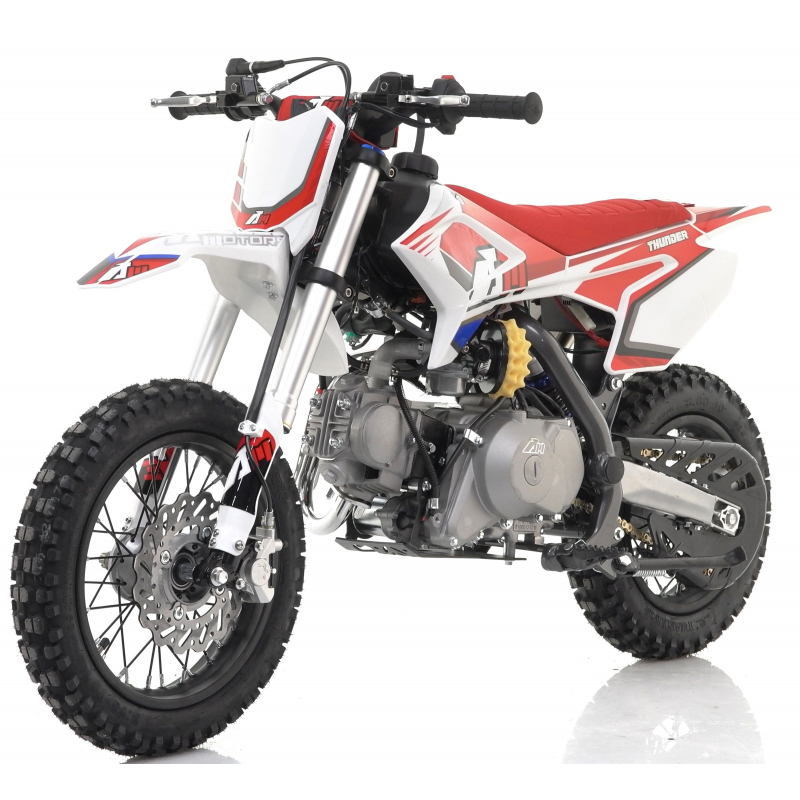

Following several years of development, we are pleased to announce the launch of the latest RFN Racing™ Thunder kids dirt bike!
As has come to be expected from this brand, the build quality and component specification on these bikes is second to none at this price point.
The bike features a genuine YX brand of engine which is well proven and extremely reliable.
Key Features -
For older, more experienced riders we also offer a similar pit bike with a 110cc semi auto engine - https://www.stormbuggies.com/products/110cc-rfn-racing-tm-thunder-semi-auto-pit-bike-12-10-red
This product is supplied in boxed (kit form) for self assembly. Please select the option above for 'Assy & PDI' if you would like us to fully assemble, test & PDI this product for you.
-------------------------------------------------------------------------------------------------------------------------------------------
Apollo RFZ RACING bikes & associated products are intended for off road use only & should NEVER under any circumstances be used on the road. Riders should always observe the essential warnings & safety advice for our products & should only operate the machine when wearing full body safety equipment & helmet. If you are in any doubt, please contact us & we will be more than happy to help you.
This product is supplied with a six month manufacturers parts only defect competition warranty.
-------------------------------------------------------------------------------------------------------------------------------------------
NET WEIGHT | 55KG |
---|---|
SEAT HEIGHT | 60 - 63CM |
WHEELBASE | 935MM (+/- 10MM) |
GROUND CLEARANCE | 177MM |
FRONT SUSPENSION | VOLT 550MM HYDRAULIC USD SHOCK |
REAR SUSPENSION | VOLT 190MM HYDRAULIC SHOCK |
SWING ARM | HIGH STRENGTH STEEL |
FRONT / REAR BRAKE | HYDRAULIC DISC |
MAX RIDER WEIGHT | 75KG |
FRONT / REAR WHEEL | 12" / 10" HIGH STRENGTH STEEL - ALLOY HUB |
FRONT / REAR TYRE | F = 60/100-12" R = 3.0-10" OFF ROAD TREAD |
SEAT | VOLT RACING - QUICK CHANGE - GRIPPY |
HANDLE BAR | 22MM TAPERED STEEL |
GRIPS | APOLLO |
FRAME | STEEL |
ENGINE | 70CC - FULLY AUTO - YX BRAND |
---|---|
ENGINE TYPE | 4 STROKE - SINGLE CYLINDER |
BORE X STROKE | 47MM X 41.4MM |
OIL CAPACITY | 0.9ML (15/30) |
CARBURETOR | PZ19 - UPGRADED |
CLUTCH | AUTO |
IGNITION | CDI |
TRANSMISSION | FULLY AUTO |
CHAIN | 420-80 REINFORCED |
REAR SPROCKET | 420-37T |
FRONT SPROCKET | 420-14T |
EXHAUST | ALLOY RACE STYLE |
FUEL TANK | 2.5L |
START | ELECTRIC |
TOP SPEED | 25-30 MPH (APPROX) POWER = 4BHP |
Key Safety Features
Please see some general safety information on the link below -
http://www.stormbuggies.com/safety
Please see a guide to our full warranty policy on the link below -
http://www.stormbuggies.com/
Please note that the guarantee / warranty is 'Return to Base' (RTB). The cost to return the goods to us and the delivery back of the goods are the responsibility of the purchaser.
Please also note that the guarantee / warranty will be void if the vehicle is not serviced in line with the servicing policy, or if the vehicle is used outside of its guidelines. For example, electric vehicles are for DRY USE ONLY.
Unless selecting the 'Assembly & PDI' option, this product will be supplied in boxed (basic kit form) for home assembly.
Depending on work rate, the assembly will generally take 1-2 hours. All of the more difficult parts such as the engine installment and electrics are already pre-assembled at the factory. The basic assembly required is comprised of the larger items such as the front wheel, handlebars and front shock absorber.
Whilst generally described as basic assembly, for safety purposes we strongly recommend that the assembly and pre ride safety testing (also known as PDI) is carried out by an experienced mechanic / technician that is competent to work on motorcycles and carry out basic adjustments if needed. For example - carburetor set up and adjustment.
---------------------------------------------------------------------------------------------------------------
This product is supplied with a 6 month manufacturers parts only defect competition warranty.
---------------------------------------------------------------------------------------------------------------
Rfn thunder 70cc Really good bike! Perfect for the beginners of the sport or just for fun!
Really good communication between myself and the shop
