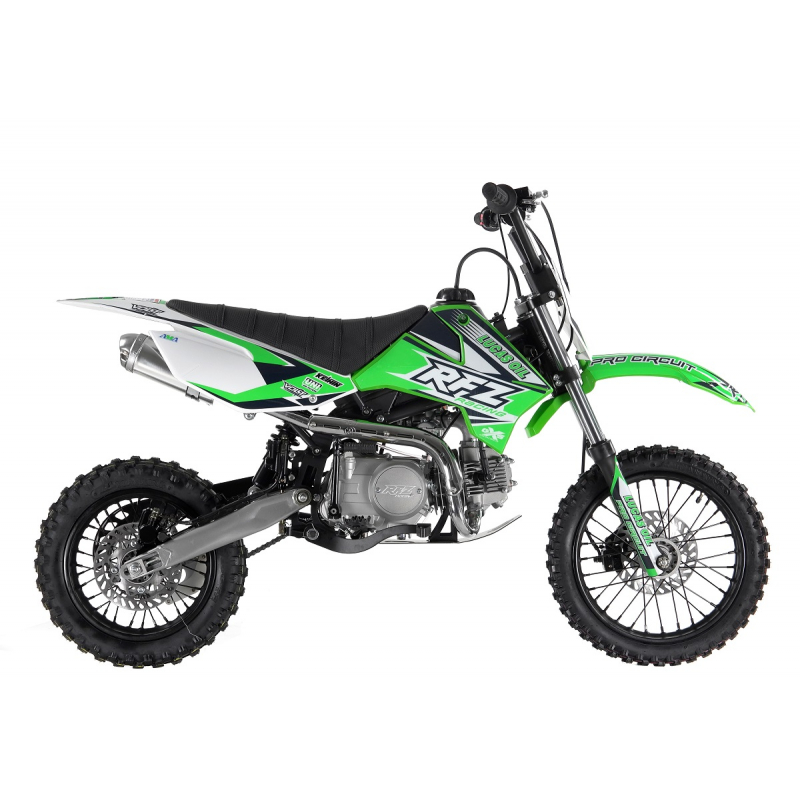

Green 125cc RFZ Racing™ Manual Pit Bike

Click image to zoom

648.9996 £649.00 inc VAT

Availability	Out of Stock Please contact us if your order is urgent and we can confirm the dispatch lead time - info@stormbuggies.com Add to wishlist Notify me when available
Supplier	RFZ Racing™
Brand	RFZ Racing™
Product Code	GREEN-125-PIT-BIKE-RFZ-RACING
Supplier Code	GREEN-125-PIT-BIKE-RFZ-RACING
Rating	0 \| (0)

More information coming soon!

The RFZ RACING™ 125cc pit bike offers an affordable start to the world of MX without scrimping on quality or design.

Key Features -

125cc Leading YX brand engine + Mikuni Carburetor upgrade
4 speed manual transmission
Chunky 14" & 12" tyres
Front & rear hydraulic disc brakes
Gripper seat & race decals
Race style exhaust

This product is supplied in boxed (kit form) for self assembly. Please select the option above for 'Assy & PDI' if you would like us to fully assemble, test & PDI this product for you.

-------------------------------------------------------------------------------------------------------------------------------------------

Apollo RFZ RACING bikes & associated products are intended for off road use only & should NEVER under any circumstances be used on the road. Riders should always observe the essential warnings & safety advice for our products & should only operate the machine when wearing full body safety equipment & helmet. If you are in any doubt, please contact us & we will be more than happy to help you.

This product is supplied with a 90 day manufacturers parts only defect competition warranty.

-------------------------------------------------------------------------------------------------------------------------------------------

General Specifications

WEIGHT	65KG
SEAT HEIGHT	760MM
WHEELBASE	1145MM (+/- 10MM)
GROUND CLEARANCE	240MM
FRONT SUSPENSION	630MM SHOCK
REAR SUSPENSION	270MM SHOCK
SWING ARM	HIGH STRENGTH STEEL
FRONT BRAKE	HYDRAULIC PISTON - 190MM VENTED DISC
REAR BRAKE	HYDRAULIC PISTON - 190MM VENTED DISC
FRONT / REAR WHEEL	14" / 12" HIGH STRENGTH STEEL
FRONT / REAR TYRE	F = 60/100-14 / R = 80/100-12
SEAT	VOLT RACING - QUICK CHANGE - GRIPPY
HANDLE BAR / CLAMPS	22MM STEEL - MINI FAT BAR / ALLOY TRIPLE
GRIPS	APOLLO
FRAME	STEEL

Engine & Transmission Specifications

ENGINE	125CC - MANUAL - YX BRAND
ENGINE TYPE	4 STROKE - SINGLE CYLINDER
BORE X STROKE	52.4MM X 55.5MM
OIL CAPACITY	0.9ML
CARBURETOR	MIKUNI
CLUTCH	WET CLUTCH - MULTI PLATE
IGNITION	CDI
TRANSMISSION	MANUAL (N-1-2-3-4)
CHAIN	428
REAR SPROCKET	41 TEETH
FRONT SPROCKET	15 TEETH
EXHAUST	RACE STYLE
FUEL TANK	4.7L
START	KICKSTART
TOP SPEED	TBC MPH (APPROX) POWER = 7BHP

Unless selecting the 'Assembly & PDI' option, this product will be supplied in boxed (basic kit form) for home assembly.

Depending on work rate, the assembly will generally take 1-2 hours. All of the more difficult parts such as the engine installment and electrics are already pre-assembled at the factory. The basic assembly required is comprised of the larger items such as the front wheel, handlebars and front shock absorber.

Whilst generally described as basic assembly, for safety purposes we strongly recommend that the assembly and pre ride safety testing (also known as PDI) is carried out by an experienced mechanic / technician that is competent to work on motorcycles and carry out basic adjustments if needed. For example - carburetor set up and adjustment.

---------------------------------------------------------------------------------------------------------------

This product is supplied with a 90 day manufacturers parts only defect competition warranty.

---------------------------------------------------------------------------------------------------------------

There are currently no reviews for this product.
