| Availability |
Low on Stock
Add to wishlist
Please contact us if your order is urgent and we can confirm the dispatch lead time - [email protected]
|
|---|---|
| Supplier | Revvi |
| Brand | Revvi |
| Product Code | REVVI-16-RED |
| Supplier Code | REVVI-16-RED |
| Rating | 0 | (0) |

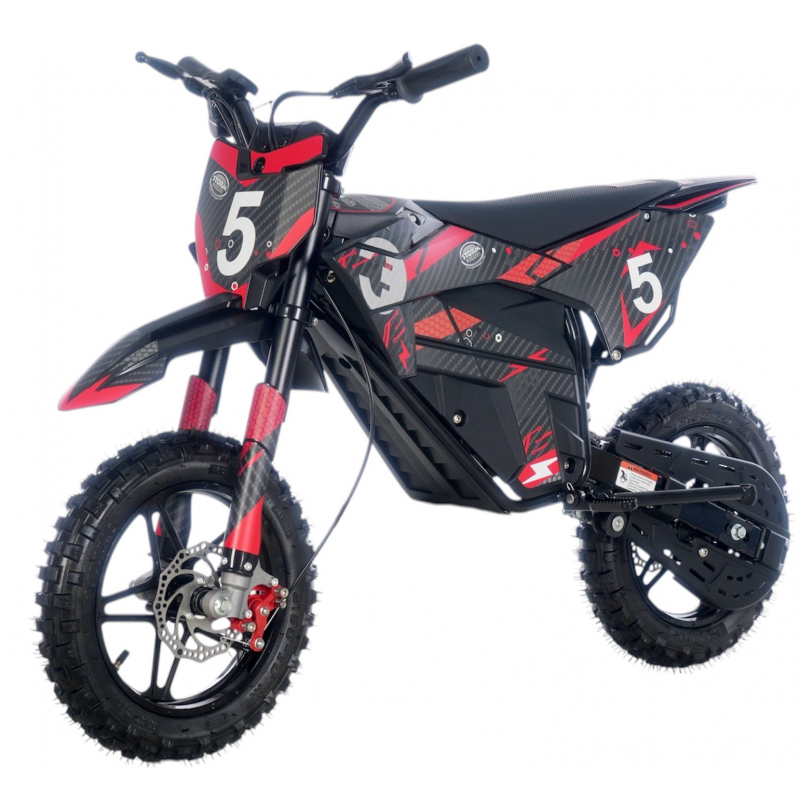

A super light electric-powered motor bike that has been specifically designed for kids, Weighing in at only 11kg's. The bike can be used as a conventional balance bike when learning to balance with its specially designed free wheel system.
Then watch the rider improve and progress onto the slow speed setting (8mph) balancing on their own using the foot pegs. Perfecting their throttle control at the same time using the bikes twist throttle. Once they are confident using the slow speed setting they can then progress to the medium speed (10mph) and fast speed setting (12mph). Features hybrid rubber air filled tyres suitable for various ground types & a chain-driven motor that delivers reliable performance.
-Removable battery fully enclosed within the bikes metal frame that can be changed in around 1 minute! The battery has a metal protection plate that is held on by 2 bolts to protect the battery from damage.
-The bike is supplied with 1 x battery, You can choose to purchase extra batteries.
-Each battery has a built in charging port, it can be charged in the bike or away from it.
Assembly
Bikes are delivered fully assembled minus the handle bars. All that you need to do is fit the handle bars to the stem. This is just 4 bolts and very straight forward. Please see owners manual for more information. All of the controls i.e throttle and brake lever are already fitted to the handle bars.
Then watch the rider improve and progress onto the slow speed setting (8mph) balancing on there own using the foot pegs. Perfecting there throttle control at the same time using the bikes twist throttle. Once they are confident using the slow speed setting they can then progress to the fast speed setting (15mph). Features hybrid rubber air filled tyres suitable for various ground types & a chain-driven motor that delivers reliable performance.
Age guideline:
5 Years + (Max rider weight 50kg)
Please note the riders age is always at the parent or guardian's discretion!.
Assembly
Bikes are delivered fully assembled minus the handle bars. All that you need to do is fit the handle bars to the stem. This is just 4 bolts and very straight forward. Please see owners manual for more information. All of the controls i.e throttle and brake lever are already fitted to the handle bars.
Each bike comes with a UK charger, owners manual and tool kit.
-----------------------------------------------------------------------------------------------------------------------------------------
Important: Please note that these electric bikes are only suitable for riding in dry conditions. Damage caused to the electrics by water will not be covered by warranty.
Where to ride: UK law states that electric products such as this should not be used on a public highway & should NEVER under any circumstances be used on the road. Riders should always observe the essential warnings & safety advice for our products & should only ride this bike while wearing safety equipment & a helmet.
ADULT SUPERVISION IS REQUIRED AT ALL TIMES.
Assembly: Basic assembly required.
Warranty: This product is supplied with 6 months return to base warranty.
Maintenance: All off-road vehicles such as these require frequent servicing + maintenance and common parts will sometimes require replacement. Please do not purchase this product unless you are willing to maintain the vehicle to a high standard.
If you are in any doubt, please contact us & we will be more than happy to help you.
-------------------------------------------------------------------------------------------------------------------------------------------
| PRODUCT WEIGHT | 11KG |
|---|---|
| HEIGHT DIMENSIONS | HANDLEBAR = 53CM / SEAT = 39-44CM |
| FRAME | LIGHTWEIGHT ALUMINIUM ALLOY |
| WHEELS | 16" COMPOSITE RIM |
| TYRES | 16" PREMIUM INNOVA BRAND |
| BRAKES | REAR DRUM BRAKE |
| POWER | BATTERY STATUS INDICATOR |
| MAX LOAD | 50KG |
| MOTOR | 170W 24V BRUSH MOTOR |
|---|---|
| BATTERY | 24V 5.2AH LITHIUM |
| CHARGE TIME | 5.5 - 6 HOURS |
| RIDE TIME | 1.25 HOURS MAX (SPEED / RIDER / TERRAIN DEPENDANT) |
| SPEED SETTINGS | SLOW = 8MPH / FAST = 15MPH (APPROX) |
| DRIVE | CHAIN |
| TRANSMISSION | FULLY AUTOMATIC MOTOR |
| START | ELECTRIC KEY OPERATED |
Please see some general safety information on the link below -
Please see a guide to our warranty policy on the link below -
Add your items to the cart
Proceed to checkout and choose Klarna
Enter your debit/credit card details Unless selecting the 'Assembly & PDI' option, this product will be supplied in boxed (basic kit form) for home assembly.
Depending on work rate, the assembly will generally take 1-2 hours. All of the more difficult parts such as the engine installment and electrics are already pre-assembled at the factory. The basic assembly required is comprised of the larger items such as the front wheel, handlebars and front shock absorber.
Whilst generally described as basic assembly, for safety purposes we strongly recommend that the assembly and pre ride safety testing (also known as PDI) is carried out by an experienced mechanic / technician that is competent to work on motorcycles and carry out basic adjustments if needed. For example - carburetor set up and adjustment.
Extremely Important – Full Nut and Bolt Check
When assembling any new vehicle, and as a part of the vehicle’s ongoing basic maintenance, it is extremely important that a FULL nut & bolt check is carried out. A comprehensive nut & bolt check is crucial for ensuring the vehicle is safe to ride from the box, and for preventing potential mechanical failures caused by vibration during use.
Please DO NOT assume that all the nuts & bolts on the vehicle are adequately tightened.
We also strongly recommend that where a Nyloc type of nut is not present, please ensure that thread lock adhesive is applied to the nut. We use the ‘Loctite’ brand, with great success.
Working from the front to the back of the vehicle, it is extremely important that EVERY nut and bolt is checked for adequate tightness.
Please pay particular and close attention to the following parts (where relevant) on the vehicle –
• Wheel & axle nuts
• Brake caliper bolts
• Brake disc bolts
• Brake hose fixings
• Triple clamp bolts
• Handlebar clamp mounts
• Lever clamp bolts
• Pedal bolts
• Shock bolts
• Shock clamp bolts
• Steering stem fixings
• Tie rod (steering) arms
• Chain tensioners
• Sprocket
• Engine / motor mountings
• Exhaust mountings & manifolds
• Pedal mountings
• Swing arm bolts
• Suspension arm bolts
• Wheel spokes
• Throttle, clutch & choke cable fixings
Following these essential steps will not only ensure rider safety, but also the long-term longevity of your vehicle.
