Orion Drum Hub Assembly Fr. L

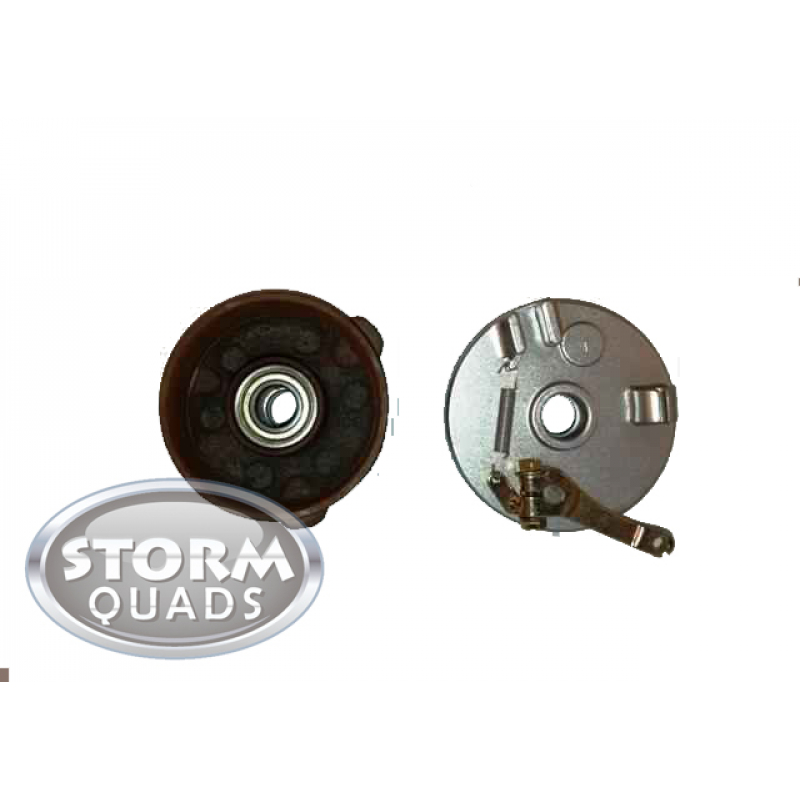

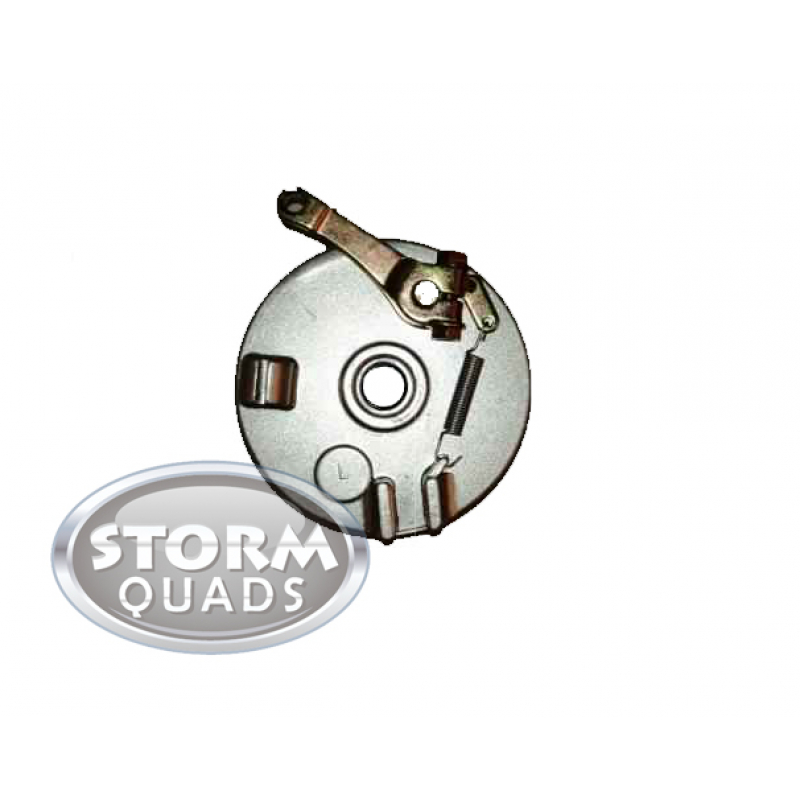

Complete Front Left Drum Brake Unit and Wheel Hub.

This unit includes: 3 stud wheel hub, drum hub, drum brake shoes, brake arm, brake spring, inner and outer wheel bearings and inner spacer and seals.

Wheel hub has 3 studs which are 78mm apart. Inner diameter of the brake drum hun is 85mm.

Overall depth of the hub including drum brake is 71mm.

The wheel hub bearing sizes are approx: 35mm outer diameter and 17mm inner diameter (6003)

This is for the left hand side (if sitting on the quad bike)
