Supplier | RFZ Racing™ |
Brand | RFZ Racing™ |
Product Code | RED-125-PIT-BIKE-RFZ-RACING |
Supplier Code | RED-125-PIT-BIKE-RFZ-RACING |
Rating | 0 | (0) |
More information coming soon!

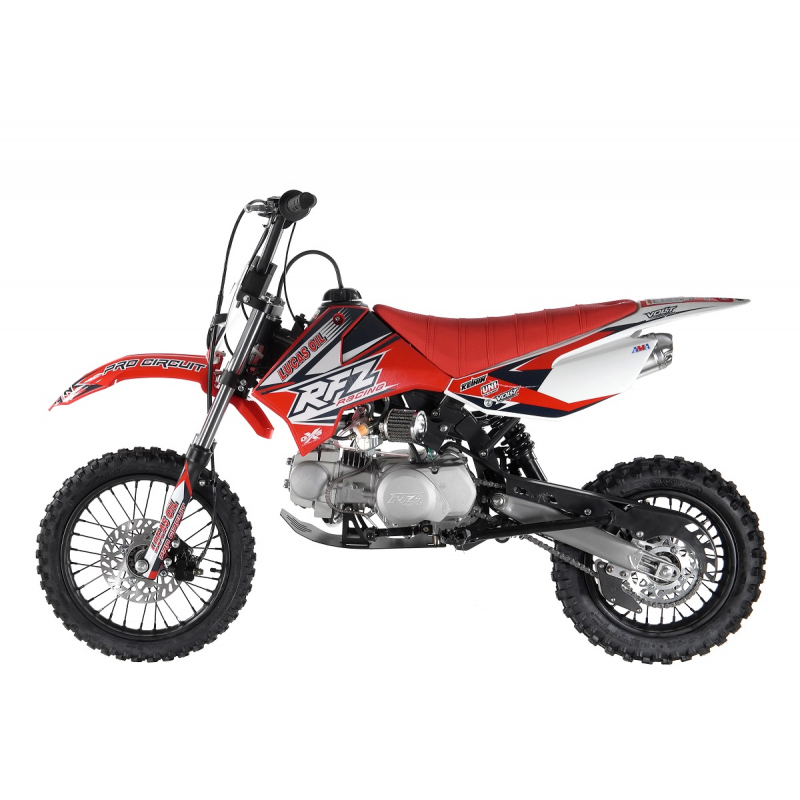

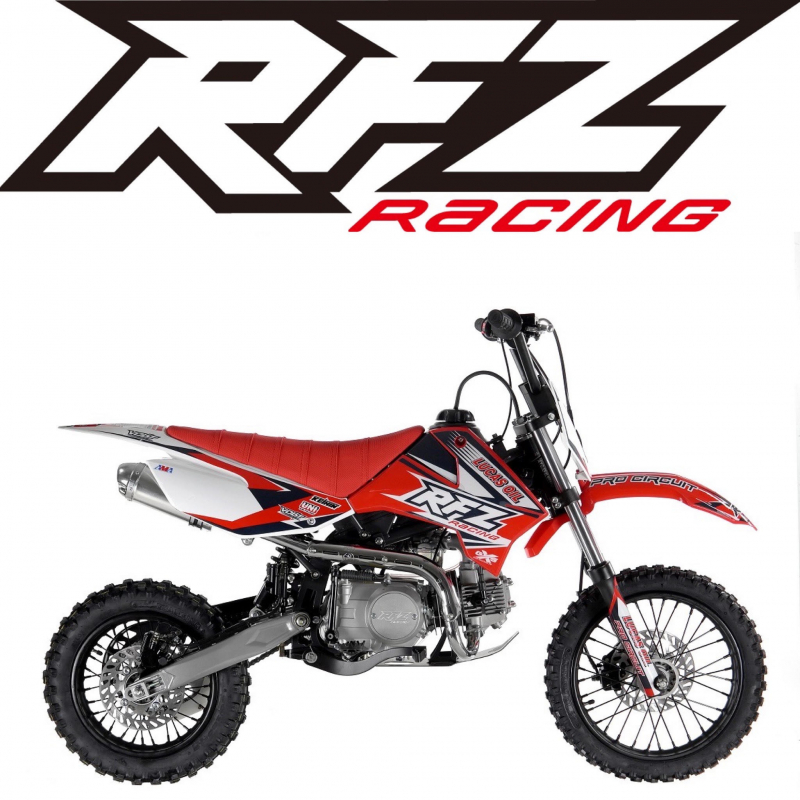

The RFZ RACING™ 125cc pit bike offers an affordable start to the world of MX without scrimping on quality or design.
Key Features -
This product is supplied in boxed (kit form) for self assembly. Please select the option above for 'Assy & PDI' if you would like us to fully assemble, test & PDI this product for you.
-------------------------------------------------------------------------------------------------------------------------------------------
Apollo RFZ RACING bikes & associated products are intended for off road use only & should NEVER under any circumstances be used on the road. Riders should always observe the essential warnings & safety advice for our products & should only operate the machine when wearing full body safety equipment & helmet. If you are in any doubt, please contact us & we will be more than happy to help you.
This product is supplied with a 90 day manufacturers parts only defect competition warranty.
-------------------------------------------------------------------------------------------------------------------------------------------
WEIGHT | 65KG |
---|---|
SEAT HEIGHT | 760MM |
WHEELBASE | 1145MM (+/- 10MM) |
GROUND CLEARANCE | 240MM |
FRONT SUSPENSION | 630MM SHOCK |
REAR SUSPENSION | 270MM SHOCK |
SWING ARM | HIGH STRENGTH STEEL |
FRONT BRAKE | HYDRAULIC PISTON - 190MM VENTED DISC |
REAR BRAKE | HYDRAULIC PISTON - 190MM VENTED DISC |
FRONT / REAR WHEEL | 14" / 12" HIGH STRENGTH STEEL |
FRONT / REAR TYRE | F = 60/100-14 / R = 80/100-12 |
SEAT | VOLT RACING - QUICK CHANGE - GRIPPY |
HANDLE BAR / CLAMPS | 22MM STEEL - MINI FAT BAR / ALLOY TRIPLE |
GRIPS | APOLLO |
FRAME | STEEL |
ENGINE | 125CC - MANUAL - YX BRAND |
---|---|
ENGINE TYPE | 4 STROKE - SINGLE CYLINDER |
BORE X STROKE | 52.4MM X 55.5MM |
OIL CAPACITY | 0.9ML |
CARBURETOR | MIKUNI |
CLUTCH | WET CLUTCH - MULTI PLATE |
IGNITION | CDI |
TRANSMISSION | MANUAL (N-1-2-3-4) |
CHAIN | 428 |
REAR SPROCKET | 41 TEETH |
FRONT SPROCKET | 15 TEETH |
EXHAUST | RACE STYLE |
FUEL TANK | 4.7L |
START | KICKSTART |
TOP SPEED | TBC MPH (APPROX) POWER = 7BHP |
Unless selecting the 'Assembly & PDI' option, this product will be supplied in boxed (basic kit form) for home assembly.
Depending on work rate, the assembly will generally take 1-2 hours. All of the more difficult parts such as the engine installment and electrics are already pre-assembled at the factory. The basic assembly required is comprised of the larger items such as the front wheel, handlebars and front shock absorber.
Whilst generally described as basic assembly, for safety purposes we strongly recommend that the assembly and pre ride safety testing (also known as PDI) is carried out by an experienced mechanic / technician that is competent to work on motorcycles and carry out basic adjustments if needed. For example - carburetor set up and adjustment.
---------------------------------------------------------------------------------------------------------------
This product is supplied with a 90 day manufacturers parts only defect competition warranty.
---------------------------------------------------------------------------------------------------------------
